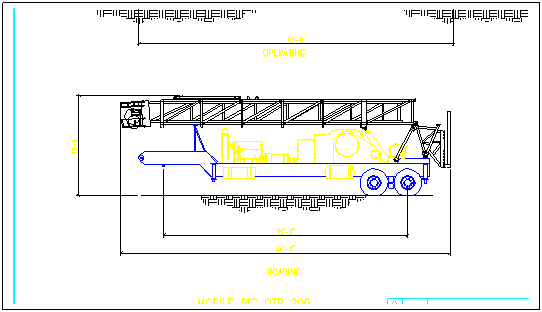

Trailer Rigs OTR 200
- 110,000 lbs static hook load capacity on four lines
- 74ft clear height mast
- 10,000 ft of 2 7/8 in racking capacity
- Mast complete with all accessories and electrical
- Two axles each rated for 25,000 lbs with suspension
- 6” main drawwork shaft
- 40×10 brake
- 30,000 lbs single line pull
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special designed gear box
- Caterpillar 3116 DITA engine with Allison transmission and all accessories
- Special design gear box
- Limit travel safety system
- 3000 psi @ 60 gmp hydraulic system
- Stanless steel control panel
- Special design folding platform and handrails
- 100 gallon fuel tank (extra tank if requested)
- Two air winches (hydraulic are optional)

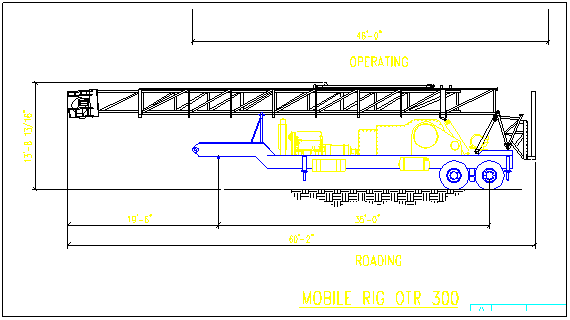

Trailer Rig 300
- 160,000 lbs static hook load capacity on six lines
- 98 ft clear height mast 14,000 ft of 3 ½ in racking capacity
- Mast complete with all accessories and electrical
- Four axles each rated for 25,000 lbs with suspension
- Airconditioned with leather seat cabin
- 6” main shaft
- 40×10 brake
- 34,000 lbs single line pull
- Lebus grooves
- 13,000 ft if 9/16 in sandline capacity
- Special water Cooling system
- Caterpillar 3306 DITA engine with Allison transmission and all accessories
- Special designed gear box
- Limit travel system
- 3000 osi @ 60 gpm hydraulic system
- Stainless steel control panel
- Special design folding platform and handrails
- 150 gallon fuel tank (extra tank if requested)
- Two air winches (hydraulic are optional)

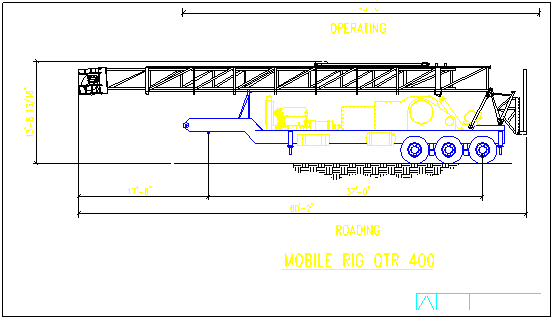

Trailer Rigs OTR 400
- 210,000 lbs static hook load capacity on six lines
- 98 ft clear height mast
- 14,000 of 3 ½ in racking capacity
- Mast complete with all accessories and electrical
- Three axles each rated for 25,000 lbs with suspension
- 6” main drawwork shaft
- 42×12 brake
- 42,000 lbs singlr line pull
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Caterpillar 3306 DITA engine with Allison transmission and all accessories
- Special designed gear box
- Limit block travel safety system
- 3000 psi @ 60 gpm hydraulic system
- Stainless steel control panel
- Special design folding platform and handrails
- 100 gallon fuel tank (extra tank if requested)
- Two air winches (hydraulic optional)

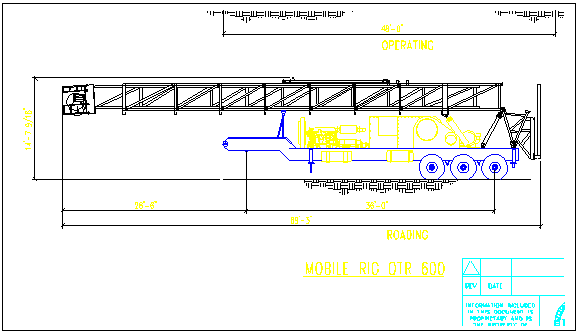

Trailer Rigs OTR 600
- 300,000 lbs static hook load capacity on eight lines
- 108 ft clear height mast
- 18,000 ft of 4 ½ in racking capacity
- Mast complete with all accessories and electrical
- Three axles each rated for 25,000 lbs with suspension
- 7” main shaft
- 45,000 lbs single line pull
- 44×12 brake
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Caterpillar 3408 DITA engine with Allison transmission and all accessories
- Special design gear box
- Limit travel safety system
- 3000 psi @ 60 gpm hydraulic system
- Stenless steel control panel
- Special design folding platform and handrails
- 150 gallon fuel tanl (extra tank if requested)
- Two air winhes (hydraulic are optional)

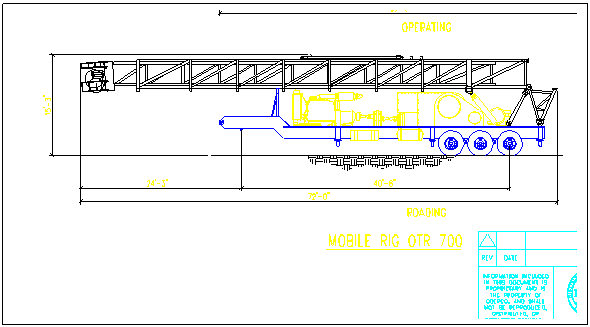

Trailer Rigs OTR 700
- 350,000 lbs static hook load capacity on eight lines
- 118 ft clear height mast
- 20,000 ft of 4 ½ in racking capacity
- Mast complete with all accessories and electrical
- Four axles each rated for 25,000 lbs with suspension
- 7” main shaft
- 50,000 lbs single line pull
- 44×12 brake
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Caterpillar 3408 DITA engine with Allison transmission and all accessories
- Special designed gear box
- Limit travel safety system
- 3000 psi @ 60 gpm hydraulic system
- Stanless steel control panel
- Special design folding platform and handrails
- 100 gallon fuel tank ( extra if requested)
- Two air winches (hydraulic are optional)

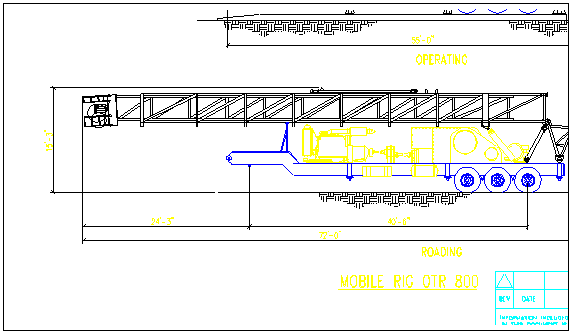

Trailer Rigs OTR 800
- 400,000 lbs static hook load capacity on 10 lines
- 120 ft clear height mast
- 22,000 ft of 4 ½ in racking capacity
- Mast complete with all accessories and electrical
- Four axles each rated for 25,000 lbs with suspension
- 8” main drawwork shaft
- 48,000 lbs single line pull
- 44×12 brake
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Two Caterpillar 3406 DITA engine with Allison transmission and all accessories
- Special designed gear box
- Limit travel safety system
- 3000 psi @ 60 gpm hydraulic system
- Stanless steel control panel
- Special design folding platform and handrails
- 100 gallon fuel tank ( extra tank if requested)
- Two air winches (hydraulic are optional)

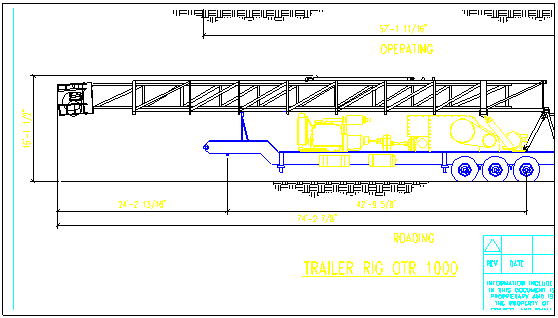

Trailer Rigs OTR 1000
- 500,000 lbs static hook load capacity on 10 lines
- 132 ft clear height mast
- 25,000 ft of 5 in racking capacity
- Mast complete with all accessories and electrical
- Four axles each rated 25,000 lbs with suspension
- 8” main shaft
- 60,000 lbs single line pull
- 44×12 brake
- Lebus grooves
- 13,000 ft of 9/16 in sandline capacity
- Special water Cooling system
- Two caterpillar 3408 DITA engine with Allison transmission and all accessories
- Special design folding platform and handrails
- 100 gallon fuel tank ( extra tank if requested)
- Two air winches (hydraulic are optional)
We are ready to start your project
ZODRECO specializes in the engineering, design and manufacturing of oilfield drilling equipment and rig packages. Provided are engineering and design services for various topsides of fixed and floating offshore structures.
