Oderco designs and builds a wide range of self-propelled and truck mounted rigs for servicing, workover and drilling applications. The mobile rig hook capacity ranges from 100 tons to 250 tons.

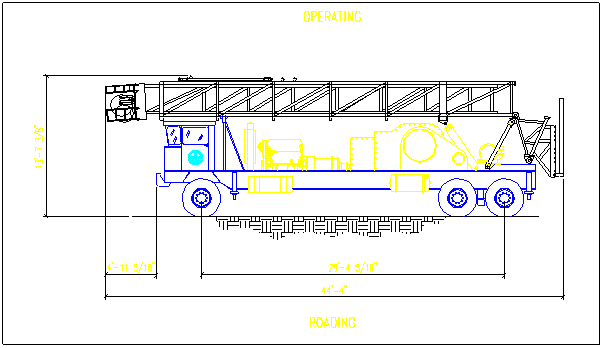

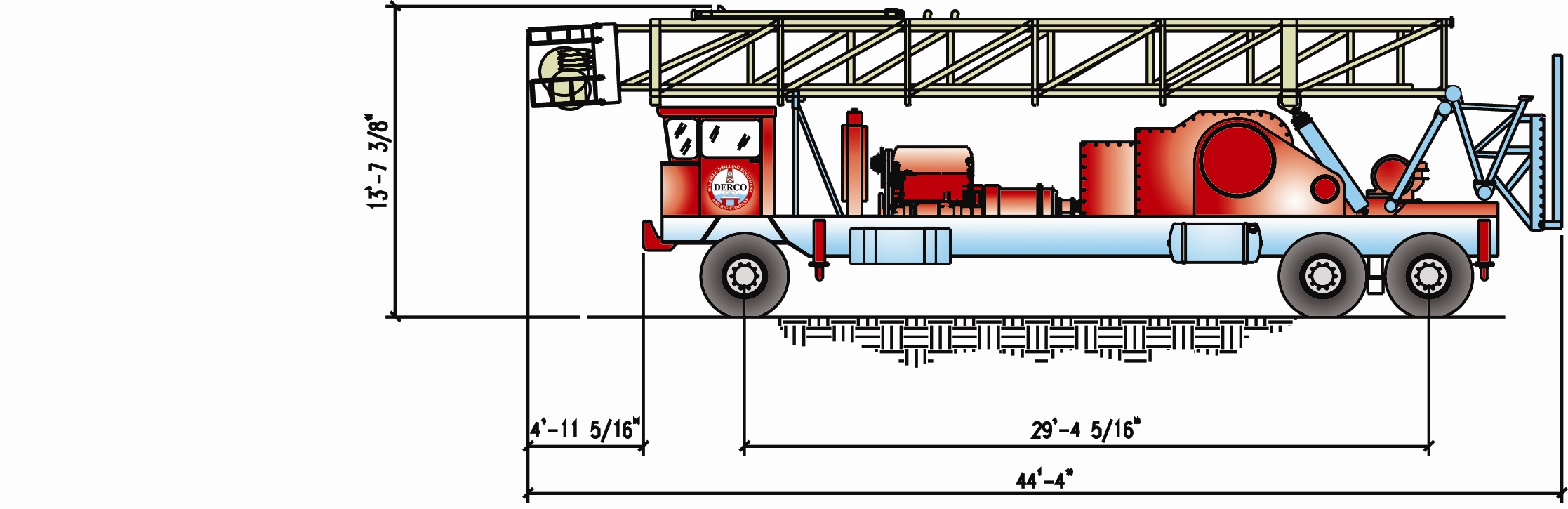

Mobile Rig 200

• 110,000 lbs static hook load capacity on four lines
• 74 ft clear height mast
• 10,000 ft or 2 7/8 racking capacity
• Mast complete with all accessories and electrical
• Three axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 6” main shaft
• 40×10 brake
• 30,000 lbs single line pull
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3116 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

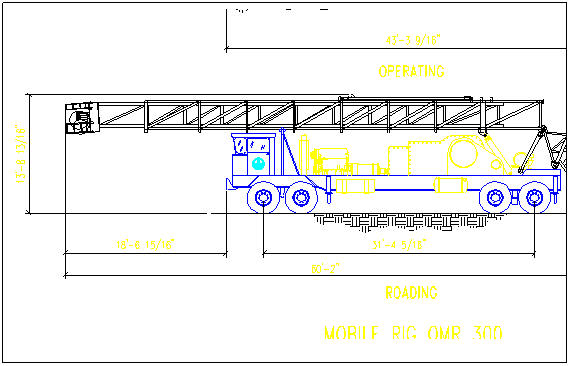

Mobile Rig 300

• 160,000 lbs static hook load capacity on six lines
• 98 ft clear height mast 14,000 ft of 3 ½ in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 6” main shaft
• 40×10 brake
• 34,000 lbs single line pull
• Lebus grooves
• 13,000 ft if 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3306 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel system
• 3000 osi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

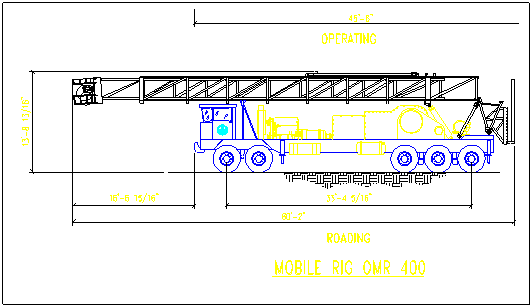

Mobile Rig 400

• 210,000 lbs static hook load capacity on six lines
• 98 ft clear height mast
• 14,000 ft of 3 ½ in racking capacity
• Mast complete with all accessories and electrical
• Four axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 6” main shaft
• 42×12 brake
• 42,000 lbs single line pull
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3306 DITA engine with Allison transmission and all accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

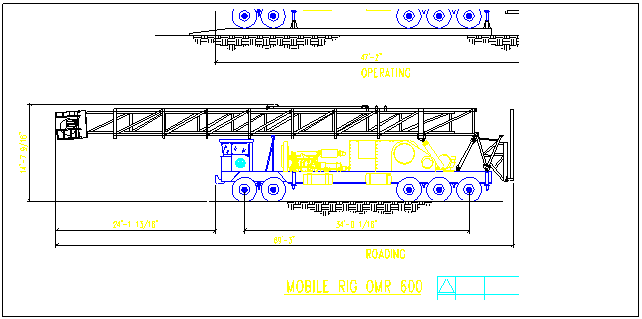

Mobile Rig 600

• 300,000 lbs static hook load capacity on eight lines
• 108 ft clear height mast
• 18,000 ft of 4 ½ in racking capacity
• Mast complete with all accessories and electrical
• Five axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 7” main shaft
• 45,000 lbs single line pull
• 44×12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Caterpillar 3408 DITA engine with Allison transmission accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stainless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

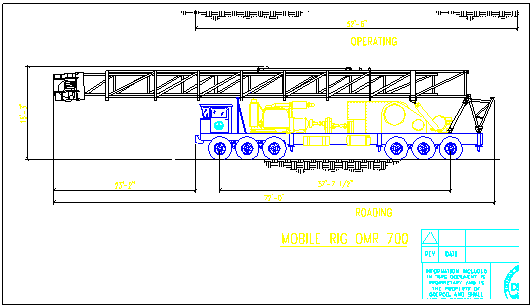

Mobile Rig 700

• 350,000 lbs static hook load capacity on eight lines
• 118 ft clear height mast
• 20,000 ft of 4 ½ in racking capacity
• Mast complete with all accessories and electrical
• Six axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 7” main shaft
• 50,000 lbs single line pull
• 44×12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water cooling system
• Caterpillar 3408 DITE engine with Allison transmission and accessories
• Special designed gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

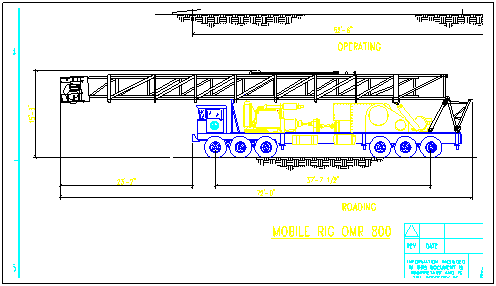

Mobile Rig 800

• 400,000 lbs static hook load capacity on 10 lines
• 120 ft clear height mast
• 22,000 ft of 4 ½ in racking capacity
• Mast complete with all accessories and electrical
• Six angles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 8” main shaft
• 50,000 lbs single line pull
• 44×12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sand line capacity
• Special water Cooling system
• Two Caterpillar 3406 DITA engine with Allison transmission and all accessories
• Special design gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank (extra tank if requested)
• Two air winches (hydraulic are optional)

Mobile Rig 1000

• 500,000 lbs static hook load capacity on 10 lines
• 132 ft clear height mast
• 25,000 ft of 5 in racking capacity
• Mast complete with all accessories and electrical
• Six axles each rated for 25,000 lbs with suspension
• Airconditioned with leather seat cabin
• 8” main shaft
• 60,000 lbs single line pull
• 44×12 brake
• Lebus grooves
• 13,000 ft of 9/16 in sandline capacity
• Special water Cooling system
• Two catapillar 3408 DITA engine with Allison transmission and all accessories
• Special design gear box
• Limit travel safety system
• 3000 psi @ 60 gpm hydraulic system
• Stanless steel control panel
• Special design folding platform and handrails
• 150 gallon fuel tank ( extra tank if requested)
• Two air winches (hydraulic are optional)
